Mono Flexline LED Lighting Kit with Wireless Control
Complete Mono Flexline LED strip kit for flexible, even lighting. Perfect decorative LED lighting for kitchens, furniture and homes – easy to install.
Watch this product and we will notify you once it is back in stock.
Mono Flexline LED Lighting Kit with Wireless Control
Description
Complete dimmable 24 V lighting kit with a Mono Flexline LED strip in a soft silicone profile, a matching driver and an optional wireless control.

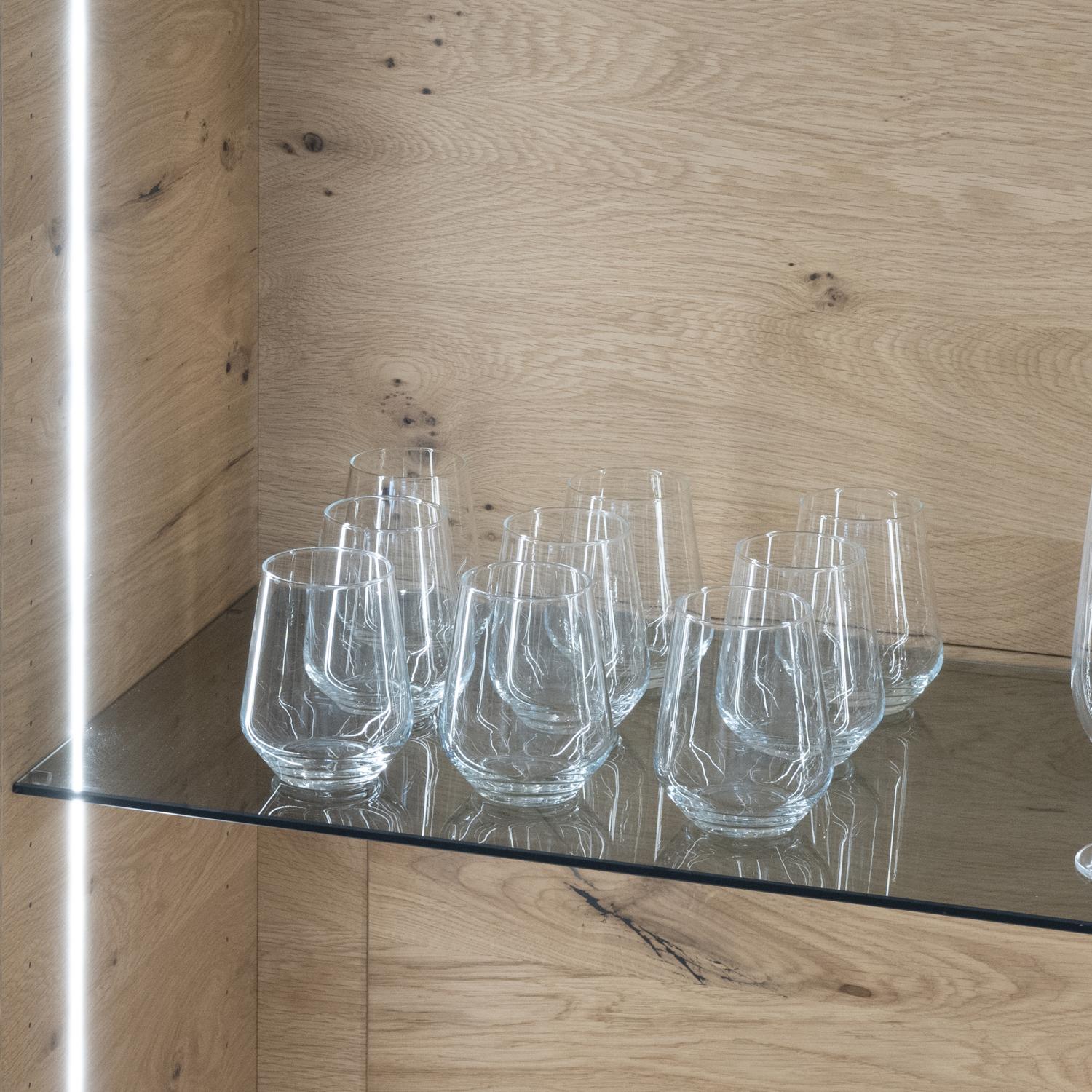

Choose the required strip length and control option. The flexible silicone profile provides a soft, even warm-white light without visible light points, making the kit suitable for kitchen worktops, cabinets, shelving and other furniture.

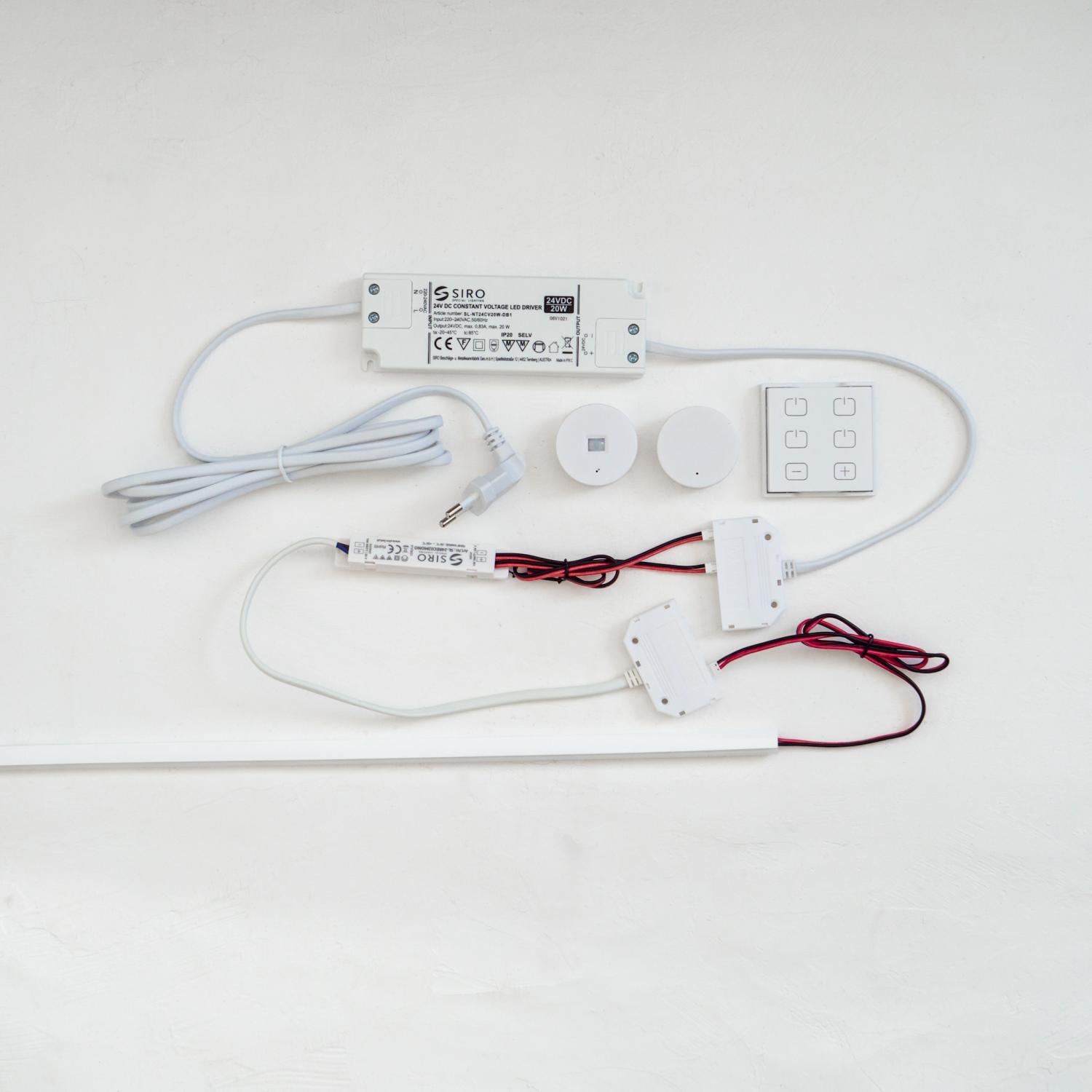

Included in the kit
- Mono Flexline LED strip in the selected length.
- 500 mm connection cable.
- 24 V driver matched to the selected strip length.
- Optional wireless control.
- Pre-paired receiver when a wireless control is selected.

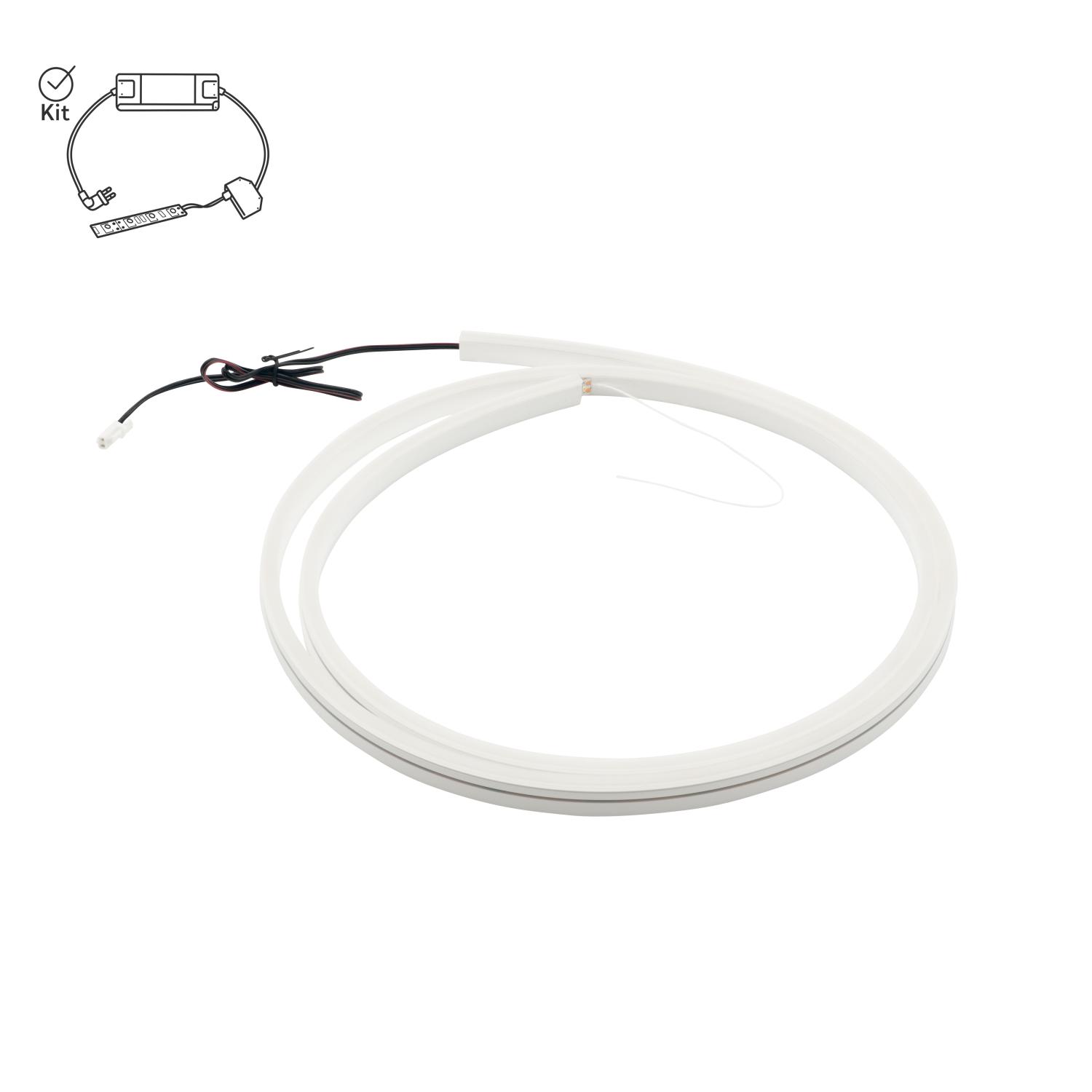

LED strip

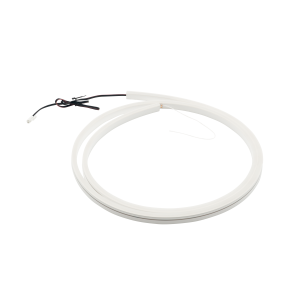

Mono Flexline LED strip
The strip can be recessed into furniture or surface-mounted with compatible mounting clips. It can be cut to the required length at the marked cutting points.
- Soft silicone profile for an even, dot-free light.
- Dimmable.
- Warm-white light, 3,000 K.
- Suitable for recessed or surface-mounted installation.
| Length | 450–3,000 mm |
| Power | 9.8 W/m |

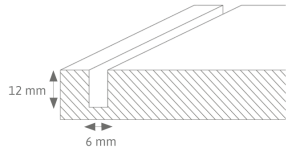

| Installation depth | 12 mm |
| Installation width | 6 mm |
| Cable length | 500 mm |
| Beam angle | 110° |
| Colour rendering | CRI >95 |
| Colour temperature | 3,000 K, warm white |
| Luminous flux | 287 lm/m |
| Voltage | 24 V DC |
| IP rating | IP67 |

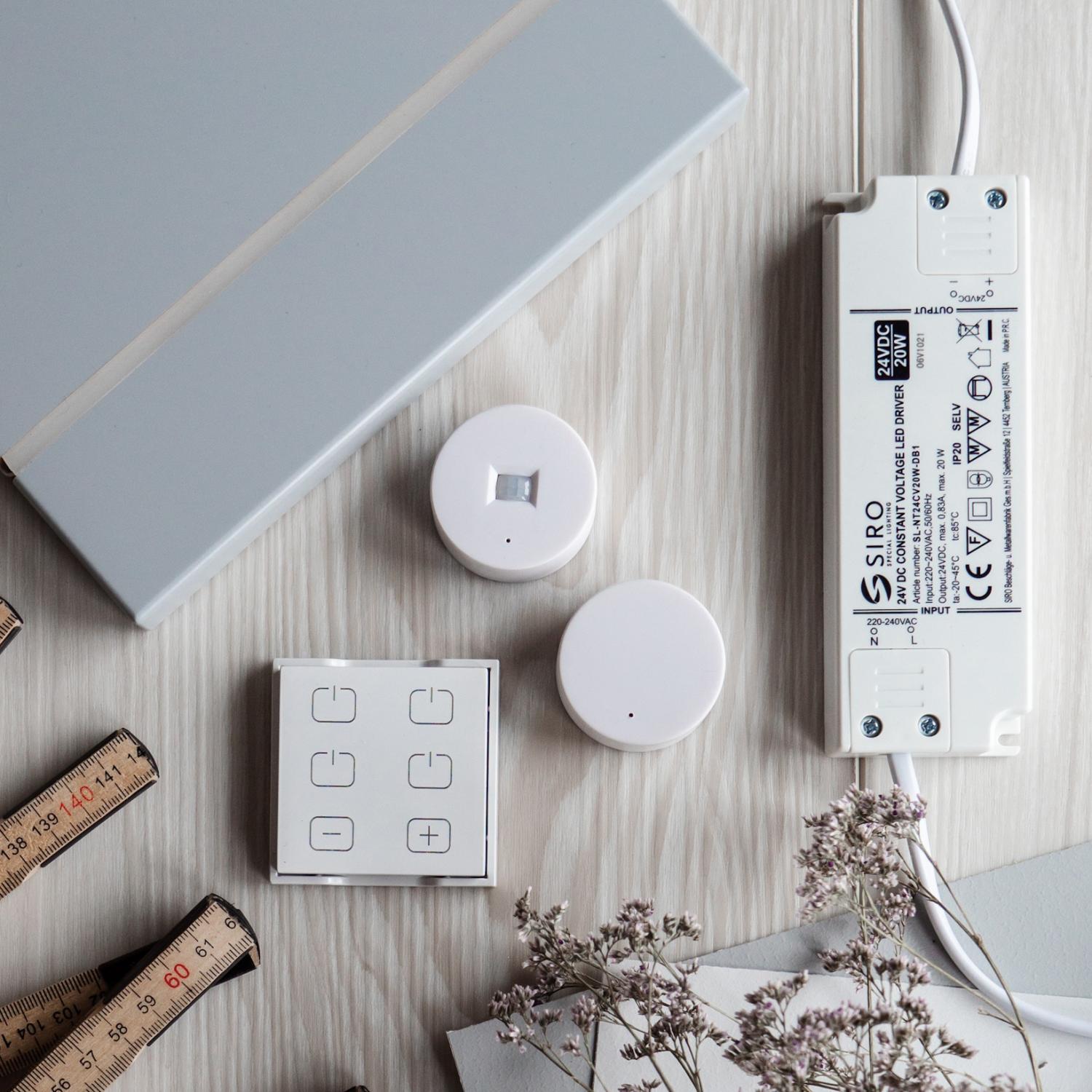

Controls
Select no control, a wireless touch sensor or a four-zone control. The wireless options provide on/off switching and dimming with a range of up to 10 metres.
Wireless touch sensor
The compact touch sensor can be surface-mounted or recessed into cabinets and furniture.
- Controls on/off switching and dimming.
- Battery included.
- Range of up to 10 metres.
| Battery | CR3032 3 V, included |
| Range | 10 metres |
| Dimensions | Ø 40 × 13 mm |
| Cut-out diameter | 35 mm |
| Recessed installation depth | 14 mm |

Four-zone control
The four-zone control can operate up to four separate lighting zones. Each zone can be switched on, off and dimmed independently and requires its own receiver.
- Controls up to four separate lighting zones.
- Battery included.
- Range of up to 10 metres.
| Battery | CR3032 3 V, included |
| Range | 10 metres |
| Control dimensions | 51 × 51 × 7 mm |
| Frame dimensions | 56 × 56 × 6 mm |

Receiver
Wireless receiver
When a wireless control is selected, one receiver is included and supplied pre-paired. An additional receiver is required for each extra lighting zone.
| Range | 10 metres |
| Dimensions | 86 × 16 × 9 mm |
| Input cable length | 300 mm |
| Output cable length | 300 mm |

Driver
The correct driver is selected automatically according to the chosen strip length. There is no need to calculate the required power separately.
Driver matched to strip length
- 18 W driver for strip lengths up to 1,500 mm.
- 36 W driver for strip lengths from 2,000 to 3,000 mm.
- Protection against short circuits and overload.
- Supplied with a plug for straightforward installation.
| Input voltage | 180–240 V AC |
| Output voltage | 24 V DC |
| Power | 18 W or 36 W |
| Maximum strip length | 3,000 mm |
| Protection class | IP20 |
| Protection | Short-circuit and overload protection |
Compatible accessories
2 m extension cable
Use one or more extension cables when a greater distance is required between the LED strip and the driver.
Additional receiver
Each additional lighting zone controlled by the four-zone control requires a separate receiver.
