Mono Mini LED Lighting Kit – Black

Complete 24 V Mono Mini LED kit in black with 1–11 recessed spotlights, matching driver and junction box. Optional wireless controls provide switching and dimming; any included battery powers the controller only.

Black mini LED spotlight complete kit LED lighting components with driver, sensors and control panel LED lighting components with driver, sensors and control panel Complete set of black Siro LED spotlights Wiring diagram for white LED mini spotlight and driver Wiring diagram for LED mini spotlight LED lighting components with driver, sensors and control panel

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Mono Mini LED Lighting Kit – Black

Complete 24 V Mono Mini LED kit in black with 1–11 recessed spotlights, matching driver and junction box. Optional wireless controls provide switching and dimming; any included battery powers the controller only.

Available colours

Black color sample Stainless-look finish sample

Description

Complete dimmable 24 V LED furniture lighting kit with 1–11 recessed Mono Mini spotlights in black, a matching driver and a junction box.

Select the number of lights and the preferred control option. The spotlights are powered through the included 24 V driver. A battery is used only by a selected compatible wireless control.

Included in the kit

  • 1–11 Mono Mini spotlights in black.
  • 2,000 mm cable for each light.
  • 18 W or 36 W driver, matched to the number of lights.
  • Junction box for up to 11 lights.
  • Optional wireless control and pre-paired receiver, depending on the selected configuration.

Light

The compact recessed spotlight has frosted glass for a soft, even warm-white light. Its shallow installation depth makes it suitable for kitchen cabinets, display cabinets, shelving, wardrobes and other furniture.

Frame finishBlack
Power per light1.5 W
Dimensions22 × 14.5 mm
Installation depth13.5 mm
Cut-out diameter18 mm
Cable length2,000 mm
Beam angle45°
Colour temperature3,000 K, warm white
Colour renderingCRI >90
Luminous flux140 lm
Voltage24 V DC
IP ratingIP44 front / IP20 rear

Technical drawing showing LED mini spotlight installation dimensions

Controls

Choose no control, a wireless touch sensor or a multi-zone control box. The available wireless controls provide on/off switching and dimming with a range of up to 10 metres.

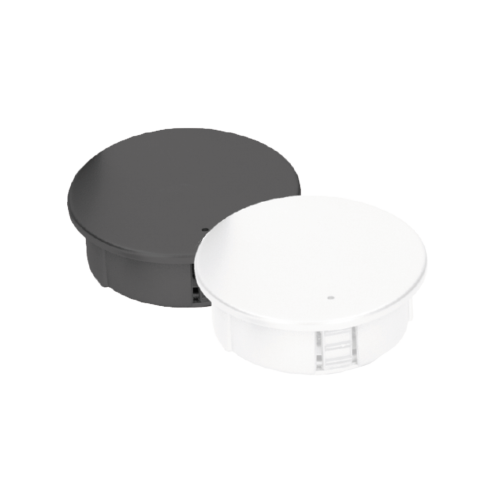

Wireless touch sensor

  • Can be surface-mounted or recessed.
  • Controls on/off switching and dimming.
  • Battery included with this control option.

Touch switch for Siro LED lighting

Multi-zone control box

  • Controls up to four separate lighting zones.
  • Each zone can be dimmed individually.
  • Battery included with this control option.

Wireless Siro control box complete kit

Wireless receiver

When a wireless control is selected, the receiver is included and supplied pre-paired for straightforward installation.

White Siro receiver with six outputs on transparent background

Driver

The correct driver is included automatically for the selected number of lights.

Up to 9 lights18 W driver
10–11 lights36 W driver
Input180–240 V AC
Output24 V DC
Protection classIP20

The driver includes a plug and protection against short circuits and overload.

Product information

Material

  • Aluminium spotlight frame with a black finish and frosted glass.

Installation

  • Plug-and-play low-voltage connections simplify installation.
  • Follow the supplied instructions and ensure that the driver remains accessible and adequately ventilated.

Brand information

Siro is an Austrian family-owned company with more than 70 years of experience in furniture fittings and lighting products.
