Complete LED Spotlight Kit with Wireless Control – White

The kit includes:

• 1–11 LED spotlights in a white finish
• 2000 mm cable for each spotlight
• 24 V driver matched to the selected number of spotlights
• Optional wireless switch
• Receiver for wireless control

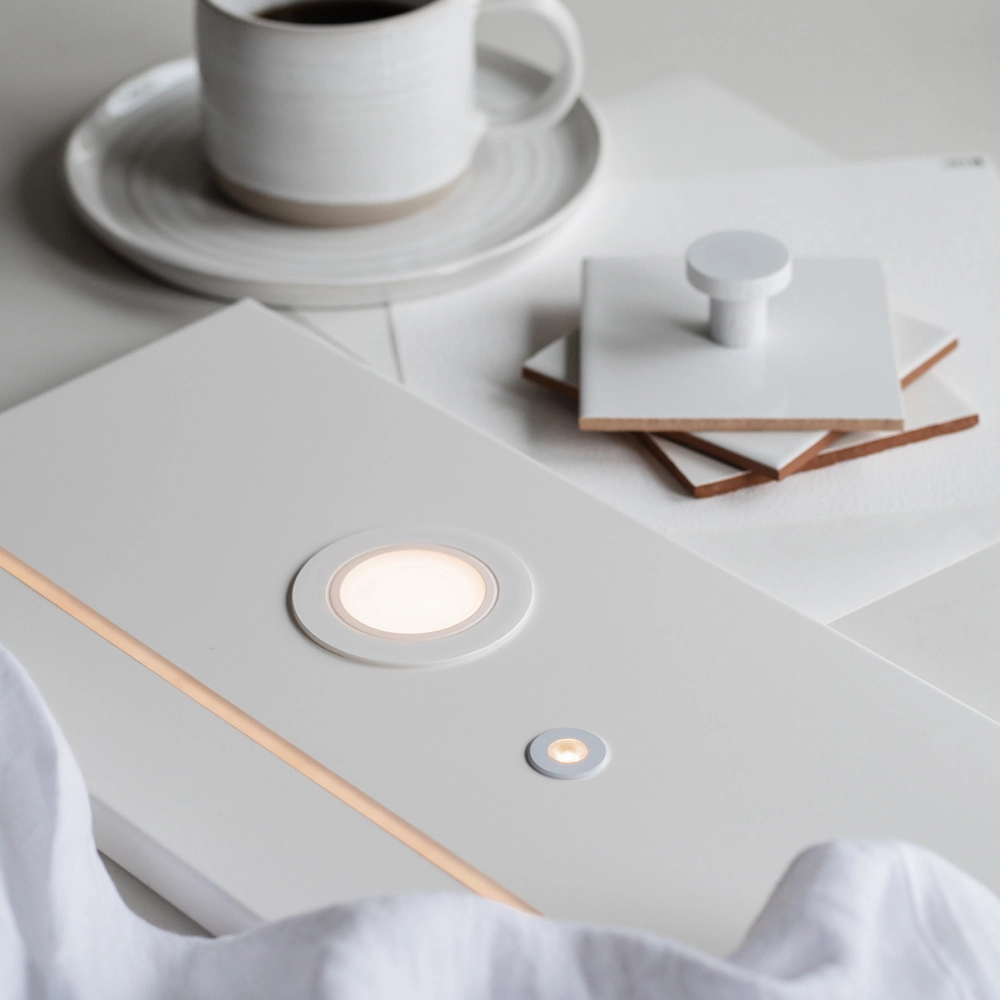

Mono LED Spotlight

A modern, slim LED spotlight in a white finish for kitchens, cabinets and furniture. The spotlight has a low installation depth and is particularly suitable for task lighting beneath kitchen wall cabinets.

• Frame Colour: White
• Power per Spotlight: 3W
• Number of Spotlights: 1–11 pcs
• Dimensions: 68 × 11 mm
• Installation Depth: 12 mm
• Drill Hole: 55–57 mm
• Cable Length: 2000 mm
• Beam Angle: 150°
• CRI: >85
• Light Colour: 3,000 K warm white
• Luminous Flux: 220 lm
• Voltage: 24 V DC
• IP Rating: IP44 front / IP20 rear
• Energy Efficiency Class: G

Touch Sensor

A compact and stylish touch sensor that can be surface-mounted or recessed into cabinets and furniture. Simply touch the sensor to switch the lighting on or off, or press and hold to dim it.

• Battery: CR3032 3V, included
• Range: 10 metres
• Dimensions: Ø 40 × 13 mm
• Drill Hole: 35 mm
• Recessed Installation Depth: 14 mm
• Installation: Surface-mounted or recessed

Four-Zone Control

This control is ideal for managing several groups of spotlights. It can operate up to four separate lighting zones, allowing each zone to be switched on, off and dimmed independently. Each lighting zone requires its own receiver.

• Battery: CR3032 3V, included
• Range: 10 metres
• Control Dimensions: 51 × 51 × 7 mm
• Frame Dimensions: 56 × 56 × 6 mm

Wireless Receiver

The receiver picks up the signal from the selected control and enables wireless operation of the lighting. One receiver is included in the kit and is supplied pre-paired with the selected control. When using the four-zone control to operate several separate lighting zones, one receiver is required for each zone.

• Range: 10 metres
• Dimensions: 86 × 16 × 9 mm
• Input Cable Length: 300 mm
• Output Cable Length: 300 mm

Driver Based on the Number of Spotlights

• 18 W driver for up to 5 spotlights
• 36 W driver for 6–10 spotlights
• 60 W driver for 11 spotlights
• Short-circuit and overload protection
• Supplied with a plug for easy installation

• Input Voltage: 180–240 V AC
• Output Voltage: 24 V DC
• Power: 18 W, 36 W or 60 W
• Maximum Number of Spotlights: 11 pcs
• Protection Rating: IP20
• Protection: Short-circuit and overload protection

2 m Extension Cable

If a longer distance is required between the spotlights and the driver, the system can be extended with one or more extension cables.

Extra Receiver

The four-zone control can operate up to four separate lighting zones. Each zone requires its own receiver. One receiver is included in the kit, and additional receivers can be purchased when needed.
